EDGE 27 SLIDING SERIES

EDGE 27
SLIDING SERIES

Profile Alloy

T6_6063

Glass Thickness

5 mm to 18 mm

Max Height per Shutter

1800 mm

Max Width per Shutter

1000 mm

Multi Locking

Yes

Mosquito Mesh

Yes

Roller Bearings

Nylon

Rail

S.S. 304 Grade & Aluminium

Mesh Mullion / Interlock

Yes

Sound Insulation

Up to 30 dB

Wind Load Resistance

Class C3

Air Permeability

Class 4

Water Tightness

Class 9A

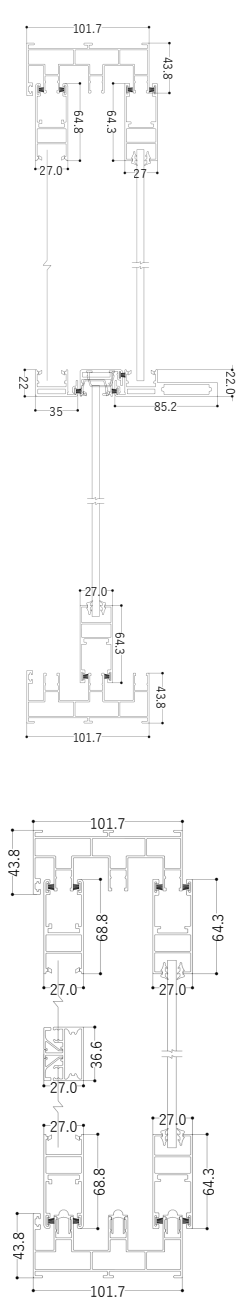

Frame Height

43.8 mm

Frame Width (2T)

50.6 × 41.1 mm

Frame Width (3T)

101.7 mm

Sightline at Interlock

22 mm

Corner Section

91.1 mm
