ELEVA PRIME LUXE 28-S

ELEVA PRIME
LUXE 28-S

Profile Alloy

T6_6063

Glass Thickness

12 mm & 28 mm

Max Height per Shutter

2800 mm

Max Width per Shutter

1500 mm

Multi Locking

Yes

Mosquito Mesh

Yes (Concealed)

Roller Bearings

SS

Rail

S.S. 304 Grade

Corner Openable

Yes

Sound Insulation

Up to 30 dB

Wind Load Resistance

Class C3

Air Permeability

Class 4

Water Tightness

Class 9A

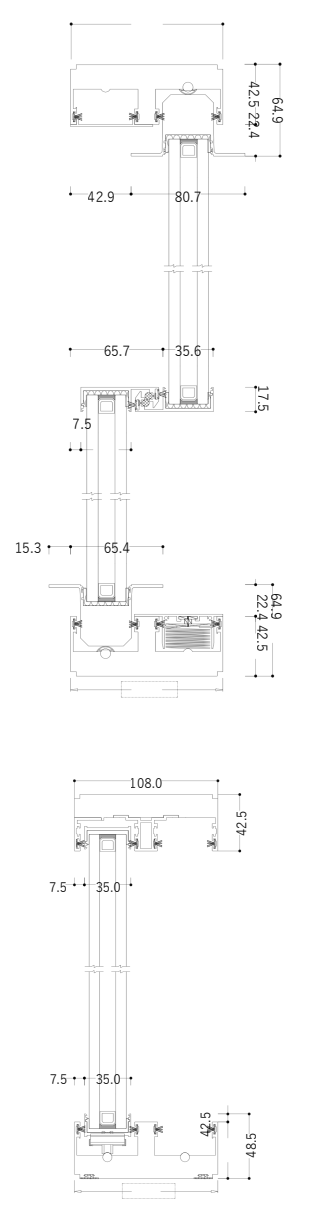

Frame Height

42.5 mm

Frame Width (2T)

108 mm

Frame Width (3T)

166 mm

Sightline at Interlock

17.5 mm

Sightline at Corner

64.9 mm

Corner Section

75 mm × 78 mm
